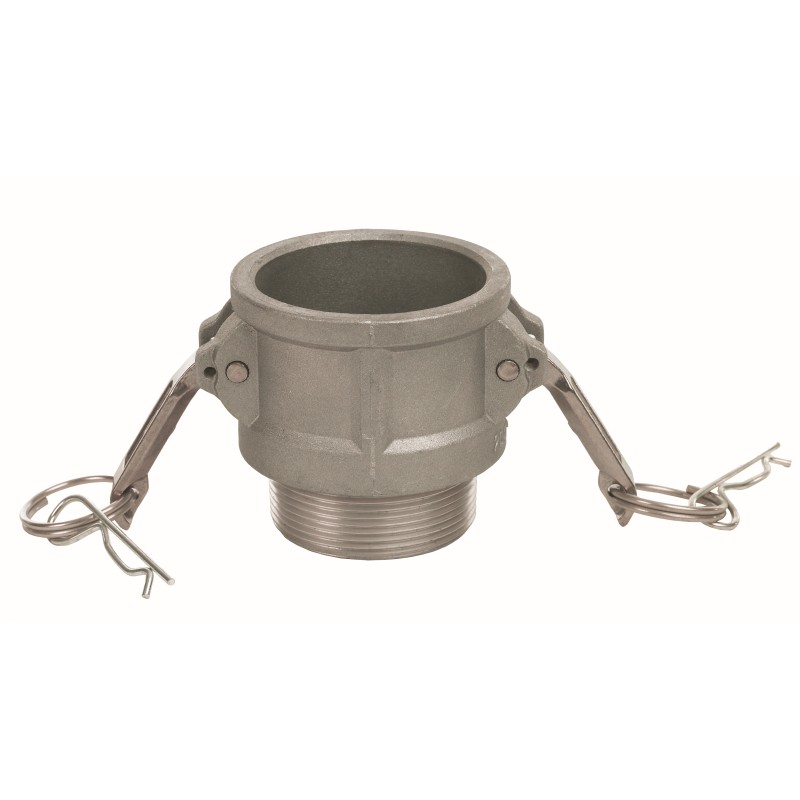

MALE THREADED FEMALE - TYPE "B"

With male BSPT thread. Available in Aluminum, Brass, AISI 316 S/S, PP = Polypropylene. Oil-resistant standard gaskets = NBR. Specials on request: EPDM (for saline solutions and aldehyde), FKM (for aromatic products, chlorine and sulfur), PTFE (for acids and solvents).

Technical Data

Description D.I. bocca racc. mm Diam. mm Diam. Pollici Pressione bar Pressione PP bar Packaging
RACC.CAM LOCK "B" F FIL.M 1/2" 24 DN 15 1/2" 10 8,5 10 NU
RACC.CAM LOCK "B" F FIL.M 3/4" 32 DN 20 3/4" 17 8,5 10 NU
RACC.CAM LOCK "B" F FIL.M 1" 37 DN 25 1" 17 8,5 10 NU
RACC.CAM LOCK "B" F FIL.M 1"1/4 53 DN 32 1.1/4" 17 6,5 10 NU
RACC.CAM LOCK "B" F FIL.M 1"1/2 53 DN 40 1.1/2" 17 6,5 10 NU
RACC.CAM LOCK "B" F FIL.M 2" 63 DN 50 2" 17 6,5 10 NU
RACC.CAM LOCK "B" F FIL.M 2"1/2 76 DN 65 2.1/2" 10 - 10 NU
RACC.CAM LOCK "B" F FIL.M 3" 92 DN 80 3" 8,5 5 10 NU
RACC.CAM LOCK "B" F FIL.M 4" 120 DN 100 4" 6,5 5 10 NU
RACC.CAM LOCK "B" F FIL.M 5" 146 DN 125 5" 5 - 10 NU
RACC.CAM LOCK "B" F FIL.M 6" 176 DN 150 6" 5 - 10 NU
