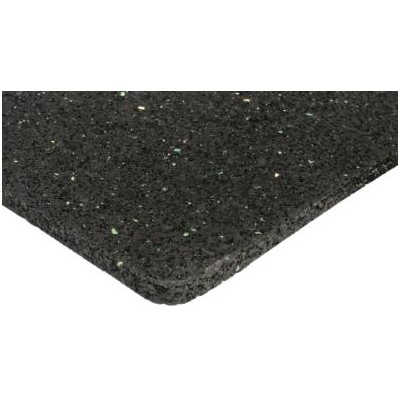

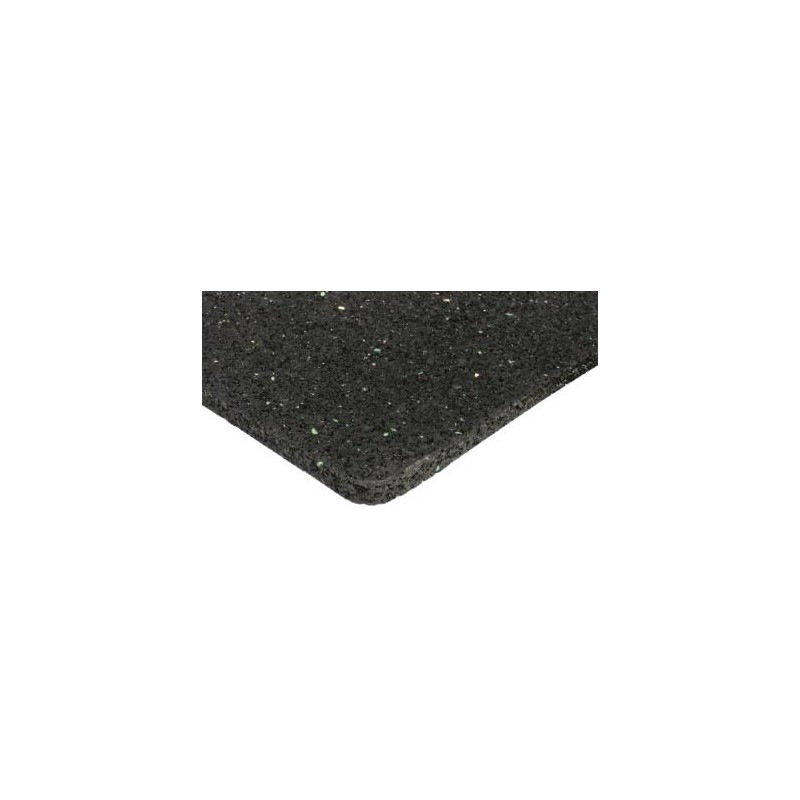

Lastra granulata in gomma SBR Promec
Granulated rubber sheetsRoll sheet composed of SBR rubber granules (Styrene...
Lastra granulata in gomma SBR Promec
Roll sheet composed of SBR rubber granules (Styrene Butadiene Rubber) anchored and hot-pressed with polyurethane binders. Hardness 48-52 Shore A (DIN 53505). Thermal conductivity (λ) 0,12 W/m°K (UNI EN 12667). Fire reaction: B2 (DIN 4102). Recyclable product obtained with 95% of recycled material.
Technical Data
| Description | Massa superficiale kg/m² | Rigidità din. per appl. a secco (senza gesso sul provino) MN/m³ | Att. liv. calpestio calcolato (peso massetto 85 kg/m²) dB | Compr. al 10% di def. kPa | Def. a compr. (dL-250 Pa) mm | Def. a compr. (dF-2000 Pa) mm | Def. a compr. (dB-50000→2000 Pa) mm |
|---|---|---|---|---|---|---|---|
| LG-LASTRA GRANULATA PROMEC 3 MT.20X1,25 | 2,2 | 77 | 18 | 102 | 2,8 | 2,7 | 2,6 |
| LG-LASTRA GRANULATA PROMEC 5 MT.10X1,25 | 3,7 | 63 | 20 | 82 | 5,2 | 5,1 | 5,1 |
| LG-LASTRA GRANULATA PROMEC 6 MT.10X1,25 | 4,4 | 62 | 20 | 133 | 6,0 | 5,8 | 5,8 |
| LG-LASTRA GRANULATA PROMEC 8 MT. 8X1,25 | 5,8 | 49 | 21 | 118 | 7,9 | 7,8 | 7,7 |
| LG-LASTRA GRANULATA PROMEC 10 MT. 6X1,25 | 7,3 | 47 | 22 | 179 | 9,7 | 9,6 | 9,5 |
