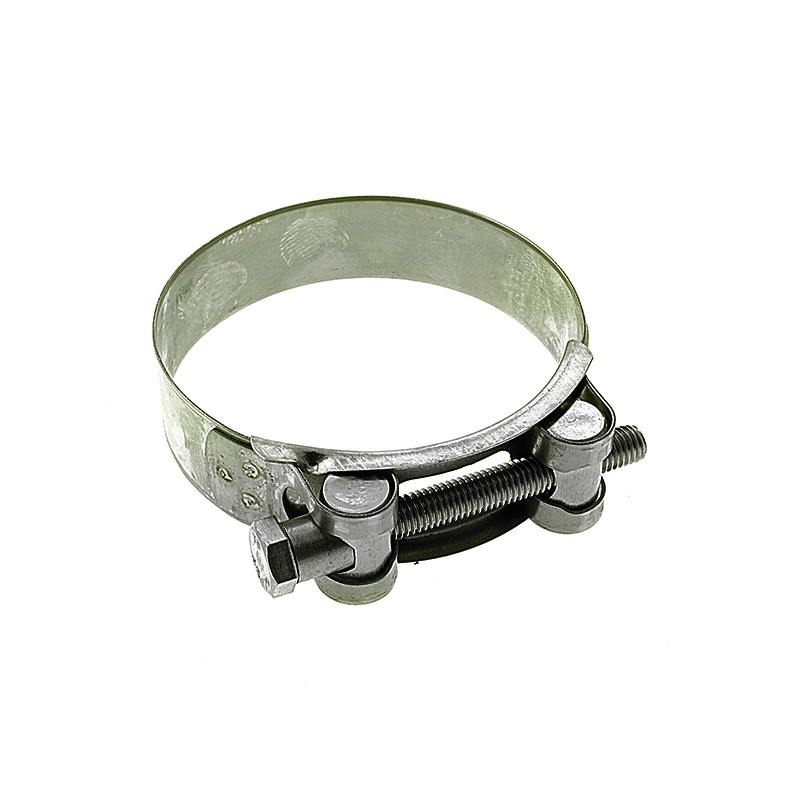

HOSE CLAMPS HEAVY TYPE W2

Stainless steel 430 disedges tape W2, screw 8.8 in zinc plated steel, threaded ferrule in zinc plated steel, three welding points.

Technical Data

Description Wrench mm Tape width mm Suggested install torque Nm Torque max Nm Screw mm Packaging
FASCETTE PESANTI W2 20-22 SPEC. 8 18 4,5 13 M5 x 40 50 NU
FASCETTE PESANTI W2 23-25 ' 8 18 4,5 13 M5 x 40 50 NU
FASCETTE PESANTI W2 26-28 8 18 4,5 13 M5 x 40 50 NU
FASCETTE PESANTI W2 29-31 10 20 9 13 M6 x 50 40 NU
FASCETTE PESANTI W2 32-35 10 20 9 13 M6 x 50 30 NU
FASCETTE PESANTI W2 36-39 10 20 9 13 M6 x 50 30 NU
FASCETTE PESANTI W2 40-43 10 20 9 13 M6 x 50 30 NU
FASCETTE PESANTI W2 44-47 10 22 9 20 M6 x 60 30 NU
FASCETTE PESANTI W2 48-51 10 22 9 20 M6 x 60 30 NU
FASCETTE PESANTI W2 52-55 10 22 9 20 M6 x 60 30 NU
FASCETTE PESANTI W2 56-59 10 22 9 20 M6 x 60 25 NU
FASCETTE PESANTI W2 60-63 10 22 9 20 M6 x 60 25 NU
FASCETTE PESANTI W2 64-67 13 22 18 20 M8 x 70 25 NU
FASCETTE PESANTI W2 68-73 13 24 18 20 M8 x 70 30 NU
FASCETTE PESANTI W2 74-79 13 24 18 20 M8 x 70 30 NU
FASCETTE PESANTI W2 80-85 13 24 18 20 M8 x 75 25 NU
FASCETTE PESANTI W2 86-91 13 24 18 20 M8 x 75 25 NU
FASCETTE PESANTI W2 92-97 13 24 18 20 M8 x 75 25 NU
FASCETTE PESANTI W2 98-103 13 24 18 20 M8 x 80 10 NU
FASCETTE PESANTI W2 104-112 13 24 18 20 M8 x 80 10 NU
FASCETTE PESANTI W2 113-121 13 24 18 20 M8 x 80 10 NU
FASCETTE PESANTI W2 122-130 13 24 18 20 M8 x 80 10 NU
FASCETTE PESANTI W2 131-139 ' 17 26 29 35 M10x105 10 NU
FASCETTE PESANTI W2 140-148 ' 17 26 29 35 M10x105 10 NU
FASCETTE PESANTI W2 149-161 17 26 29 35 M10x105 10 NU
FASCETTE PESANTI W2 162-174 17 26 29 35 M10x105 5 NU
FASCETTE PESANTI W2 175-187 17 26 29 35 M10x120 10 NU
FASCETTE PESANTI W2 188-200 17 26 29 35 M10x120 10 NU
FASCETTE PESANTI W2 201-213 17 26 29 35 M10x120 10 NU
FASCETTE PESANTI W2 214-226 ' 17 26 29 35 M10x120 10 NU
FASCETTE PESANTI W2 227-239 17 26 29 35 M10x120 5 NU
FASCETTE PESANTI W2 240-252 17 26 29 35 M10x120 5 NU
