Tubi per prodotti abrasivi SPIRALSABBIA/SGM
    Tubi per prodotti abrasivi SPIRALSABBIA/SGM

SPIRALSABBIA/SGM

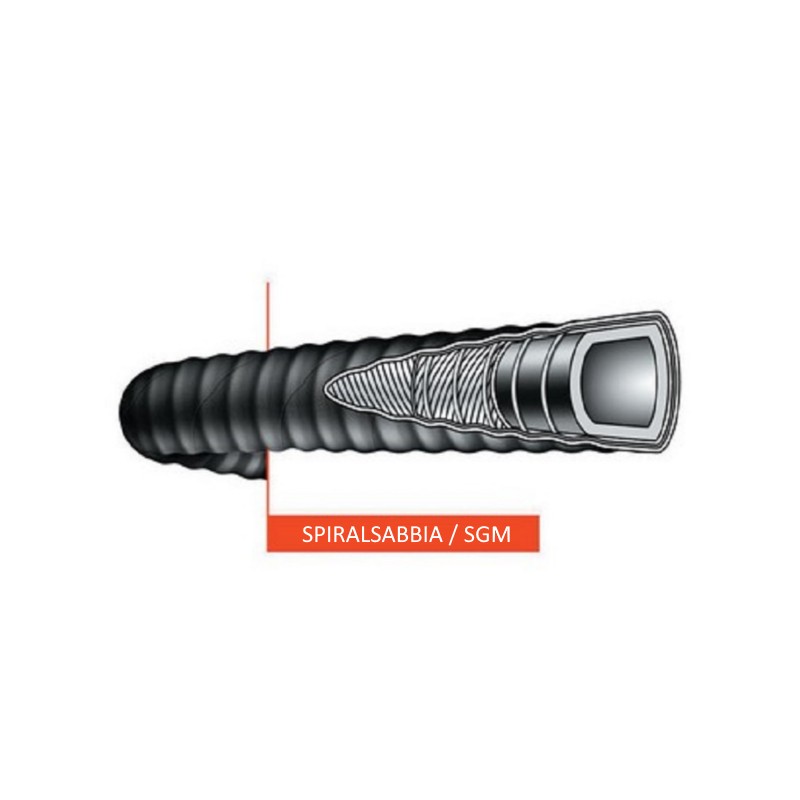

For suction and delivery of abrasive materials such as concrete, sand, gravel etc. Antistatic black, smooth rubber tube highly abrasion resistant. High tensile synthetic plies and steel wire helix. Black, synthetic rubber cover weather, ozone and, abrasion resistant, corrugated with textile finish. Available in standard NE-NE version or MA-NE version with PARA rubber tube. It can be coupled with SPECIAL FITTINGS: external fitting flanged half-shells. Temperature range: -35°C +70°C. Other diameters available on request.

Technical Data
Information request

Technical Data

Description P Es. Bar P Scoppio Bar Nominal weight kg/m R min. curv. mm Packaging
TUBO G SPIRALSABBIA/SGM MA-NE 127 10 32 12,4 650 20 MT
TUBO G SPIRALSABBIA/SGM MA-NE 152 10 32 14,3 750 20 MT
TUBO G SPIRALSABBIA/SGM MA-NE 203 10 32 18,8 1750 12 MT
TUBO G SPIRALSABBIA/SGM MA-NE 254 10 32 22,6 2000 12 MT
TUBO G SPIRALSABBIA/SGM MA-NE 305 10 32 29 2500 12 MT
TUBO G SPIRALSABBIA/SGM NE-NE 102 10 32 8 500 40 MT
TUBO G SPIRALSABBIA/SGM NE-NE 127 10 32 12,4 650 20 NU
TUBO G SPIRALSABBIA/SGM NE-NE 305 10 32 29 2500 12 MT

Application Sectors
