Tubi per prodotti chimici ACIDI/FC/10
    Tubi per prodotti chimici ACIDI/FC/10

ACIDI/FC/10

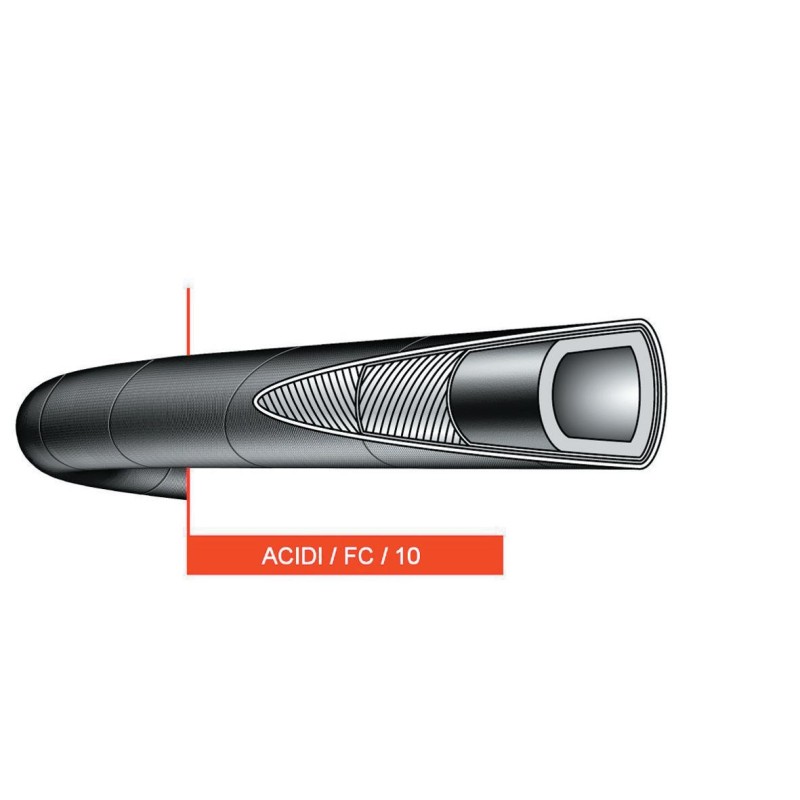

Delivery of acids even at high concentration. Black, smooth synthetic rubber tube. High tensile synthetic plies. Black synthetic rubber cover acids, weather, ozone and abrasion resistant, smooth with textile finish. Temperature range: -40°C +120°C. Contact our technical department to check the compatibility of the hose with the temperature and the product to be conveyed. Not suitable for oils and organic products. Other dimensions, lengths, colors and pressures available on request.

Technical Data
Information request

Technical Data

Description Nominal weight kg/m Working press. bar Bursting press. bar Packaging
TUBO G ACIDI/FC/10 20X29 0,58 10 40 40 MT
TUBO G ACIDI/FC/10 25X34 0,68 10 40 40 MT
TUBO G ACIDI/FC/10 30X42 1 10 40 40 MT
TUBO G ACIDI/FC/10 35X48 1,3 10 40 40 MT
TUBO G ACIDI/FC/10 40X55 1,55 10 40 40 MT
TUBO G ACIDI/FC/10 45X62 1,65 10 40 40 MT
TUBO G ACIDI/FC/10 51X65,5 1,85 10 40 40 MT
TUBO G ACIDI/FC/10 60X76 2,3 10 40 40 MT

Application Sectors
