Tubi per acqua
    Tubi per acqua

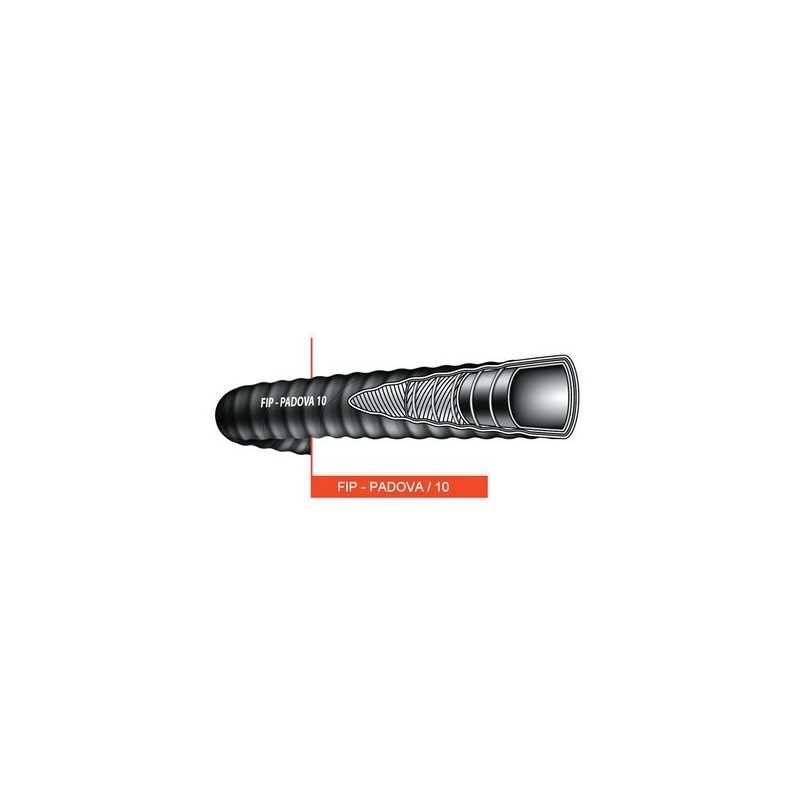

FIP-PADOVA/10

Hose for water, industrial water and non corrosive fluids suction and delivery. Black, smooth synthetic rubber inner layer. Embedded steel wire helix, high tensile synthetic plies. Black, synthetic rubber outer layer weather, ozone and abrasion resistant, corrugated with textile finish. On stock in different working lengths, with cuffs. Temperature range: -30°C +85°C. Other dimensions, lengths and colors available on request.

Technical Data
Information request

Technical Data

Description Degree of suction Nominal weight kg/m Working press. bar Bursting press. bar Min. bending radius mm Packaging
TUBO G FIP-PADOVA/10 100 Media/Forte 4,3 3 9 300 2/3/4/6/8/20 MT
TUBO G FIP-PADOVA/10 120 Media/Forte 5,35 3 9 360 2/3/4/5 MT
TUBO G FIP-PADOVA/10 150 Media/Forte 6,61 3 9 450 2/3/4/5/6/20 MT
TUBO G FIP-PADOVA/10 200 Media/Forte 12,23 3 9 800 2/3/4/5 MT
TUBO G FIP-PADOVA/10 250 Media/Forte 17,20 3 9 1000 2/4/6/20 MT
TUBO G FIP-PADOVA/10 300 Media/Forte 21,80 3 9 1200 2/4/6 MT

Application Sectors
