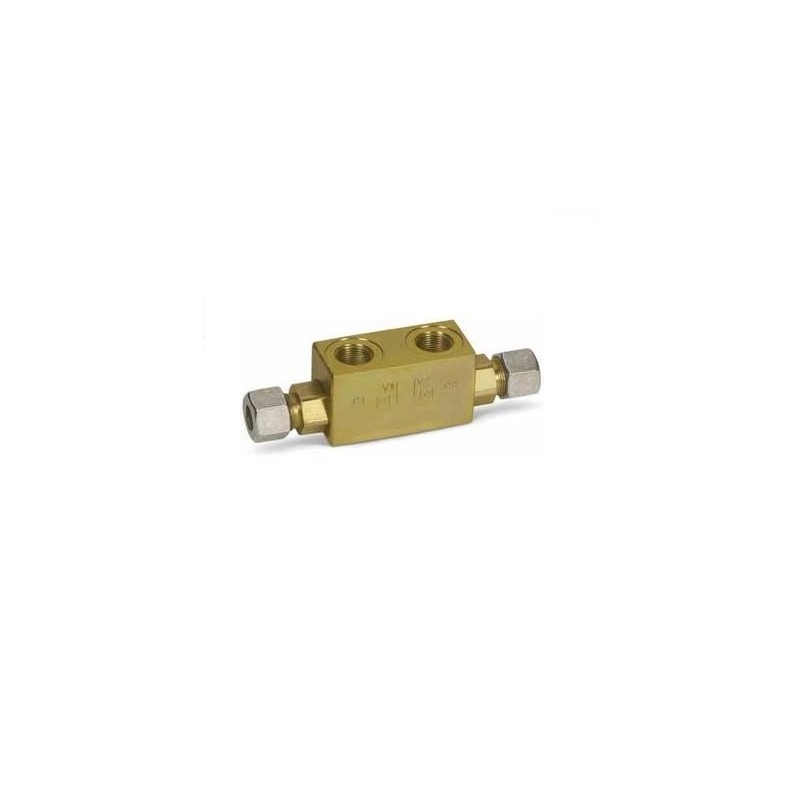

Cvxdp - double pilot operated check valves for 12 mm pipe mounting (din 2353)

Information request

Description

USE AND OPERATION:

Pilot check valves are used to block the actuator in both directions. Flow is free in one direction and blocked in the reverse direction until pilot pressure is applied. They are easily assembled on a cylinder. We supply on request fittings kit for mounting on cylinders with a specific centre distance.

MATERIALS AND FEATURES:



  • Zinc-plated steel body
  • Internal parts in hardened and ground steel
  • BRUNA N standard seals
  • Poppet type: any leakage.



APPLICATIONS:

Connect V1 and V2 to the pressure flow and C1 and C2 to the actuator with the pipe.

ON REQUEST:



  • without seal on pilot piston
  • without nut and ogive
  • 1 bar spring
  • 8 bar spring
