CVSP - Valvole di blocco pilotate a semplice effetto a 4 vie
    CVSP - Valvole di blocco pilotate a semplice effetto a 4 vie

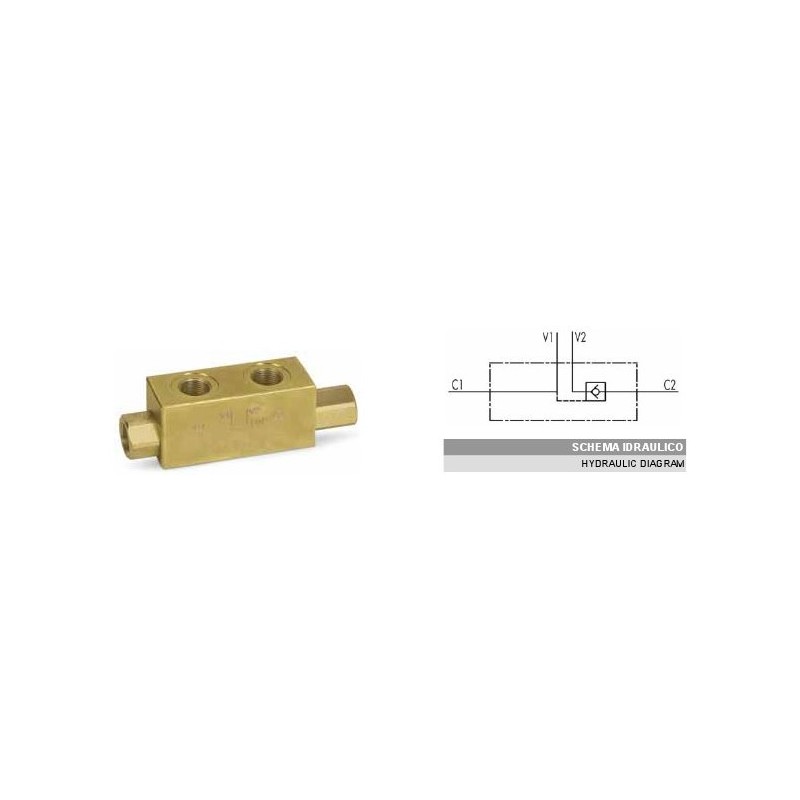

CVDP - Double Pilot Operated Check Valves

Information request

Description

USE AND OPERATION:

Pilot check valves are used to block teh cylinder in both directions. Flow is free in one direction until pilot pressure is applied.

MATERIALS AND FEATURES:



  • Zinc-plated steel body
  • Internal parts in hardened and ground steel
  • BUNA N standard seals
  • Poppet type: any leakage.



APPLICATIONS:

Connect V1 and V2 to the pressure flow and C1 and C2 to the actuator.

ON REQUEST:



  • without seal on pilot piston
  • 1 bar spring
  • 8 bar spring
