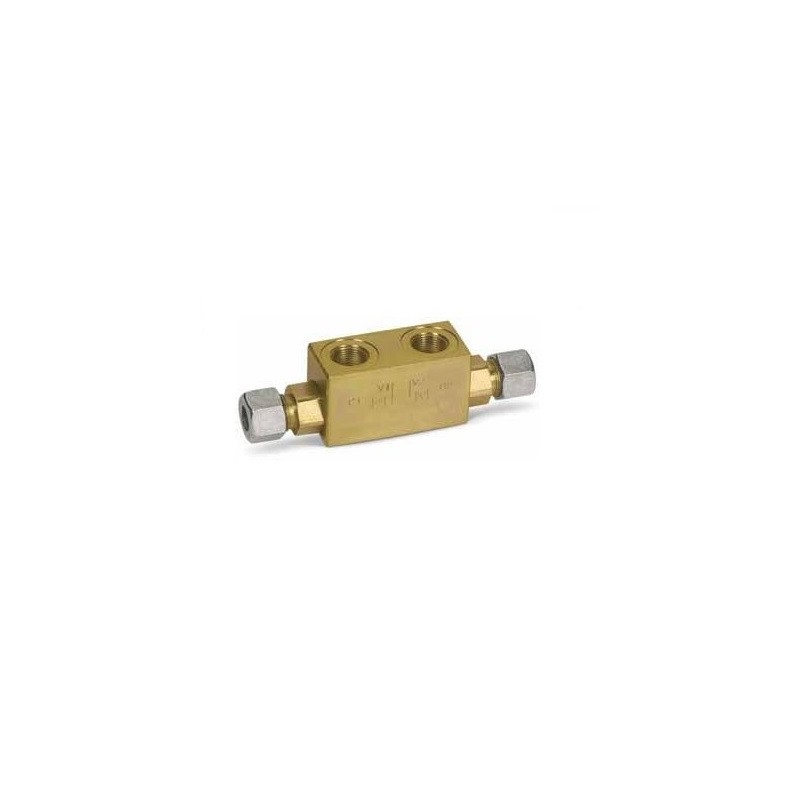

CVXSP - Single Pilot Operated Check Valves for 12 mm Pipe Mounting (DIN 2353)

Information request

Description

Single pilot operated check valves for 12 mm pipe mounting (DIN 2353)

USE AND OPERATION:

These valves are used to block the cylinder in one direction. The flow is free in one direction and blocked in the reverse direction until pilot pressure is applied. They are easily assembled on cylinders. Specific distance-centre mounting fittings kit on request.

MATERIALS AND FEATURES:



  • Zinc-plated steel body
  • Internal parts in hardened and ground steel
  • BUNA N standard seals
  • Poppet type: any leakage



APPLICATIONS:

Connect V1 and V2 to the pressure flow, C1 to the free flow side of the actuator and C2 to the actuator side you want the flow to be blocked.

ON REQUEST:



  • without seal on pilot piston
  • without nut and ogive
  • 1 bar spring
  • 8 bar spring
