AV80 - Quick-release Couplings ISO 7241-1 Part A

Information request

Description

Quick-release couplings ISO 7241-1 Part A

Features:



  • These quick couplings are manufactured according to the ISO 7241-1 part A standard
  • Interchangeability according to ISO 7241-1 part A standard
  • Shut-off poppet valve system
  • Machined from high tensile steel and cabonitrited/induction hardened for wear parts they are zinc plated with a yellow cromate finish
  • Standard seal materials are Nitrile Rubber (NBR). On request: Viton, EPDM, Neoprene (CR) or other seals.
  • Back up rings in PTFE
  • Working temperatures with standard seals (NBR) from -25°C to +125°C
  • Connectability without pressure
  • Disconnection under pressure is not allowed
  • On request, only size 1/2" is available with connectability in presence of residual pressure
  • PVC, Nylon and Aluminium protective dust plugs and caps are available



Technical Data:

Applications:

It is the quick release coupling most used in a wide range of hydraulic applications including industrial and agricultural. Rugged construction makes it a good choice for mobile applications including dump trucks, trucks trailer connections, snow plows, etc..

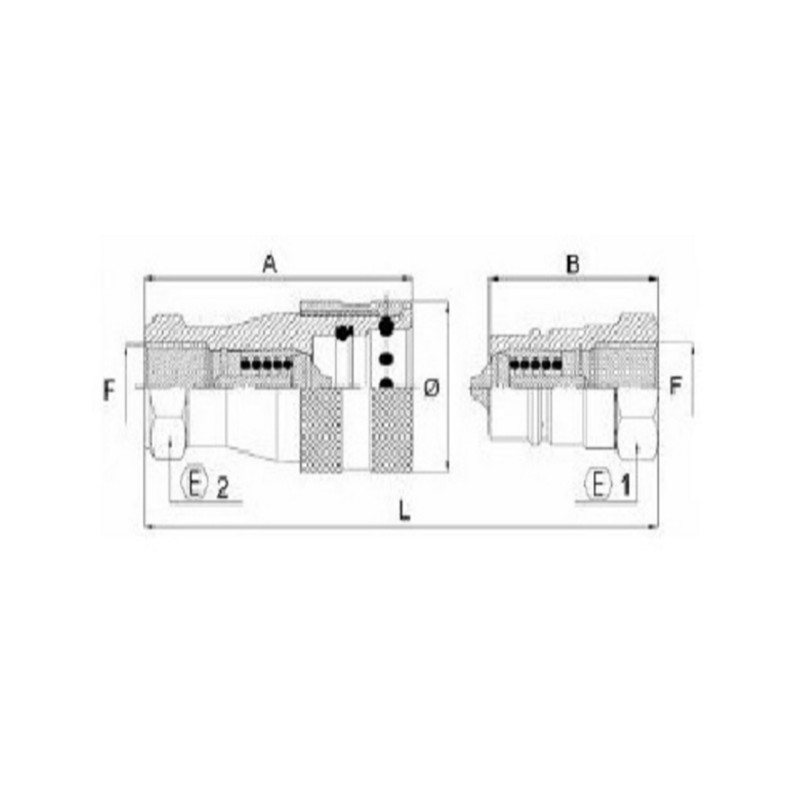

Dimensions:

*Metric, NPTF and UNF threads available on request.



*su richiesta sono disponibili filettature Metriche, NPTF e UNF
