HV80 - HV Series Quick-release Couplings

Description

Features:



  • Quick-couplings for agriculture/industry
  • Machined from high tensile steel and carbonitrited / induction hardened for wear parts, they are zinc plated with a yellow chromate finish
  • Shut-off poppet valve system
  • Standard seal materials are Nitrile Rubber (NBR). On request: Viton, EPDM, Neoprene (CR) or other seals
  • Back up rings in PTFE
  • Working temperatures with standard seals (NBR) from -25°C to +125°C
  • Connectability without pressure
  • Disconnection under pressure is not allowed
  • Interchangeability according to ISO 7241-1 part A standard for the diam. size 1/2" only
  • PVC, Nylon and Aluminum protective dust plugs and caps are available



Technical Data:

Applications:

The HV series used, in the industry /agriculture, on construction equipment, forestry equipment, agricultural machinery, etc..

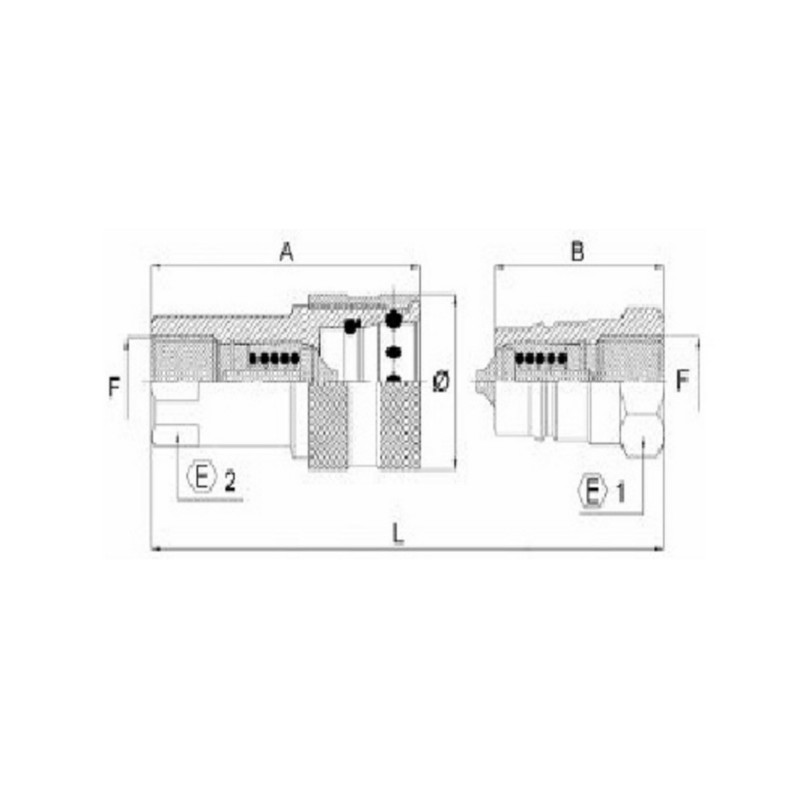

Dimensions:

* Metric, NPTF and UNF threads are available on request

** Interchangeable according to ISO 7241-1 part A standard
