FF80 - Flat Face Quick-release Couplings
Description
Features:
- Interchangeability according to ISO 16028. The size 10 in in accordance with NFPA T3.20.15 (HTMA) too
- Shut-off flat face system
- Machined from high tensile steel and carbonitrited / induction hardened for wear parts, they are zinc plated with a yellow chromate finish
- Standard seal material is Nitrile Rubber (NBR). On request: Viton, EPDM, Neoprene (CR) or other seals
- Back up rings in PTFE
- Working temperatures with standard seals (NBR) from -25°C to +100°C
- Safety system protecting against accidental disconnection
- Eliminates hydraulic spillage when connecting or disconnecting hydraulic attachments
- Avoid air inclusion during connection
- Easy to clean
- PVC, Nylon and Aluminium protective dust plugs and caps are available
Technical Data:
* ISO base
Applications:
These couplings are widely used across hydraulic applications in construction, industrial and agricultural equipment markets. Thanks to its design, it stops external agents from incoming restricting the problems caused by contamination of the hydraulic plant and restrains environmental pollution problems due to hydraulic oil spillage.

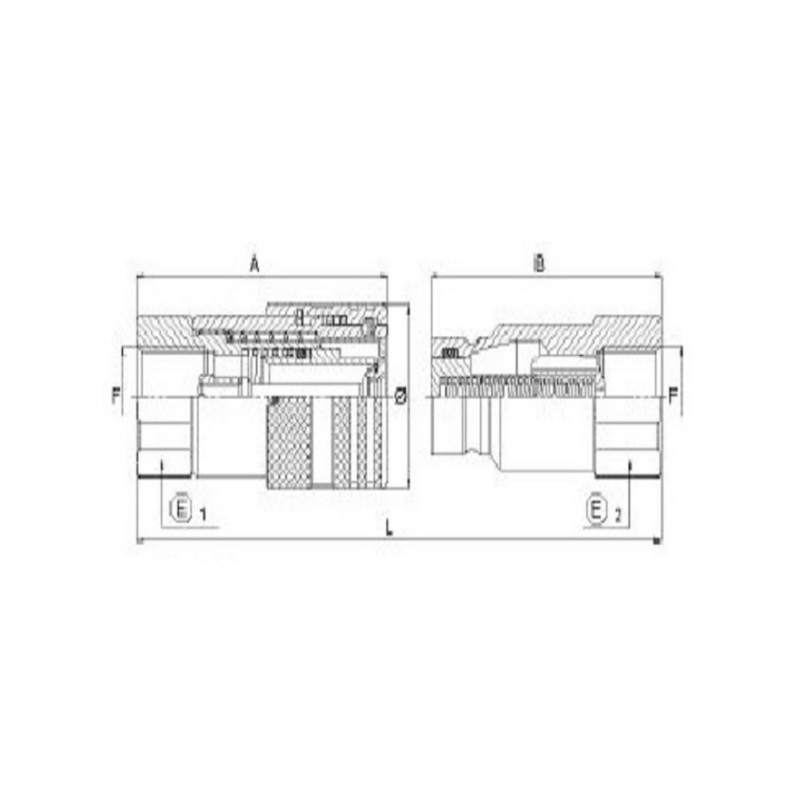

Dimensions:
* Metric, NPTF and UNF threads are available on request
