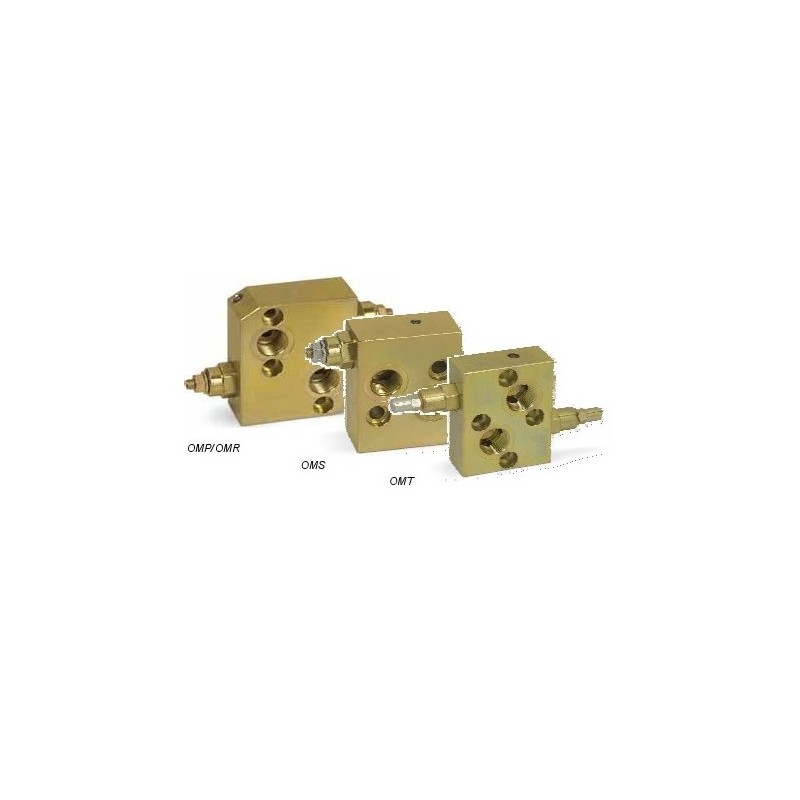

RVDDC - Valvole antiurto flangiabili

RVDDC - Dual Cross Relief Valve Flangeable

Information request

Description



USE AND OPERATION:

Made up by 2 relief valves with crossed tank, this valve is used to block pressure to a certain setting in the 2 ports of an actuatorhydraulic motor. It's ideal to provide protection against sudden shock pressures and to adjust different pressures in the 2 ports of an hydraulic circuit as well. Direct flange is ideal for Danfoss motor types OMS, OMP-OMR and OMT and provides a maximum safety, very low pressure drops and solid installation.

MATERIALS AND FEATURES:

  • Zinc-plated steel body
  • Internal parts in hardened and ground steel
  • BUNA N standard seals
  • Poppet type: minor leakage.

APPLICATIONS:

Flange M1 and M2 directly to the motor and connect ports V1 and V2 to pressure flow.

ON REQUEST:

  • different setting range (see table 1)
  • other settings available (CODE-T: please specify the desired setting)
  • single acting with just 1 relief valve available (CODE-SE)
  • valve with brake release (CODE-SF)
