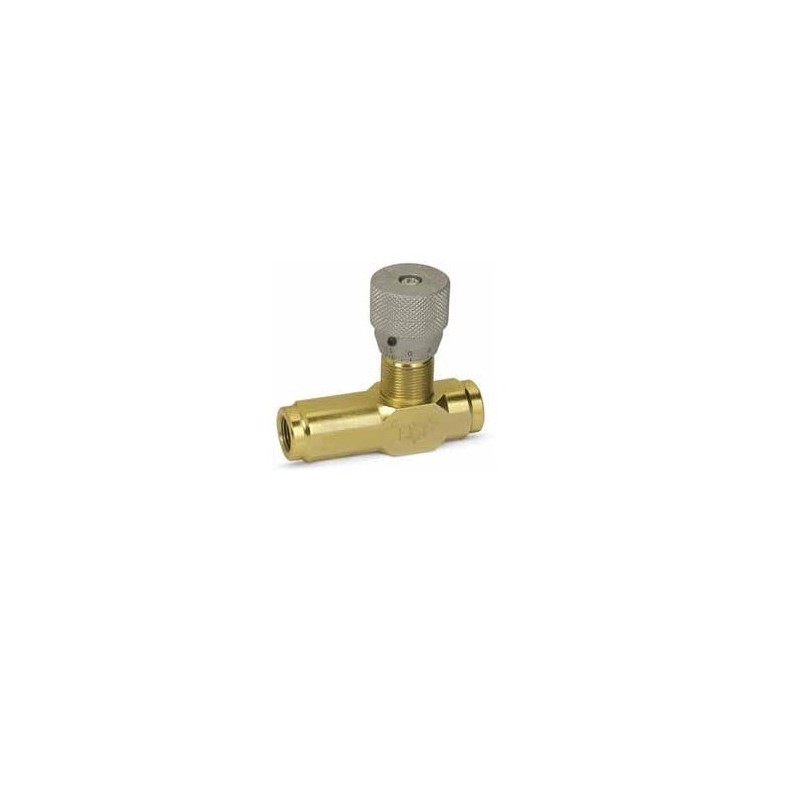

VU90FR - One-directional 90 Flow Regulator Valves

Information request

Description



USE AND OPERATION:

This valve is used to adjust flow speed of actuators in both directions. As pressure compensation is not provided, flow adjustment depends on pressure and fluid viscosity. High adjustment sensitivity.

MATERIALS AND FEATURES:



  • Zinc-plated steel body
  • Internal parts in hardened and ground steel
  • BUNA N standard seal
  • Tightness: needle type. Minor leakage with closed valve.



APPLICATIONS:

Connect a port to the pressure. Flow will be adjusted in the other one. When used on actuator with double pilot check valve, VRFB 90° has to be mounted between the actuator and the double pilot check valve. Flow adjustment is made by rotating the aluminium hand knob after loosening the side locking screw. This particular configuration allows an accurate and sensitive adjustment.
