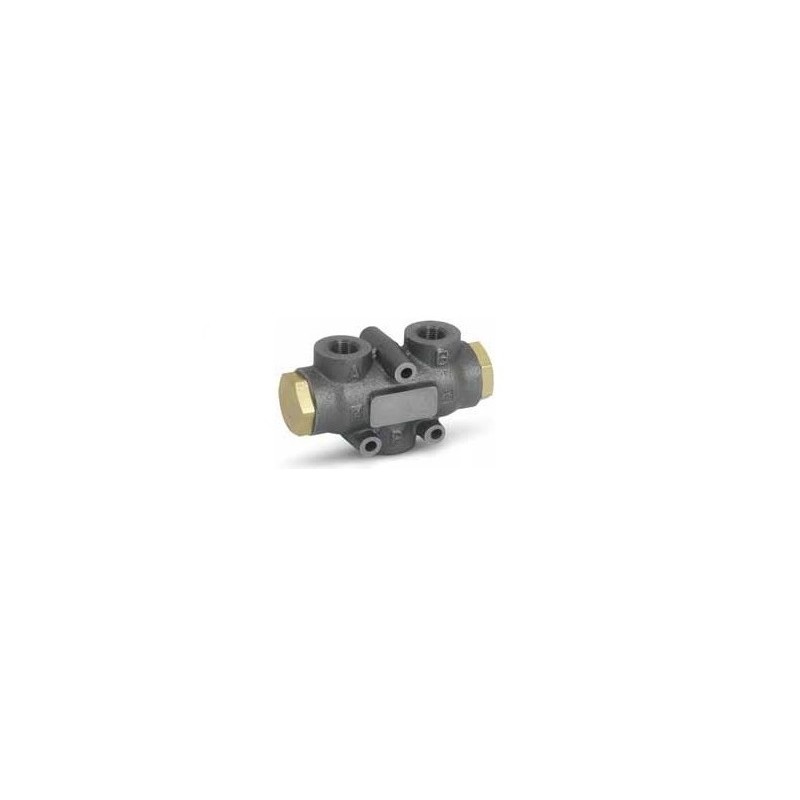

2WPFD - Two-ways Flow Divider

Information request

Description

USE AND OPERATION:

These valves allows the division of inlet flow into two equal parts(50/50) and they unify it in the reverse direction independentlyof any pressure changes and flow. These valves are used when two equal actuators, that are not mechanically coupled, supplied by the same pump and controlled by a single distributor, must move simultaneously both at input and output.

MATERIALS AND FEATURES:



  • Cast iron/steel body
  • Internal parts in hardened and ground steel
  • BUNA N standard and Teflon seals
  • Tightness: by diameter combination. Minor leakage Cylinder stroke error tolerance of 2%. Any synchronisation differences are compensated by the terminal position of the stroke.



APPLICATIONS:

Connect P to pressure flow and A and B to the actuators.



*Capacity values refer to input P
