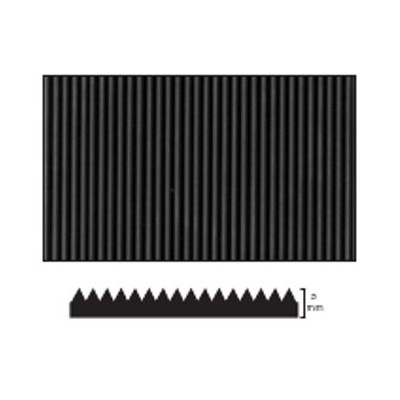

MILLERIGHE 40.000 VOLT INSULATED MAT

INSULATED CARPETS IN ACCORDANCE TO VDE 0303 RULES 2ND PART DIN 53481 Perforation tension : 50.000 Volts- testing 40.000 Volts - working tension 36.000 Volts. Presentation: Fine ribbed designed upper surface and cloth imprint underlayer. Marking: yellow colored with continuous print in underlayer throughout the whole length of roll. Applications: for pavements and general electric plant protection, electric transformation cabins, motor rooms, industrial rooms where there is high tension etc…

Technical Data

Description Color Sh A hardness Size m Spec. weight g/cm³ Thickness mm Packaging
TAPP.GOMMA ISOL.40000V.SP.4,5 MILLERIGHE Grigio 65 1x10 1,5 4,5 10 MQ

Description

INSULATED CARPETS IN ACCORDANCE TO VDE 0303 RULES 2ND PART DIN 53481 Perforation tension : 50.000 Volts- testing 40.000 Volts - working tension 36.000 Volts. Presentation: Fine ribbed designed upper surface and cloth imprint underlayer. Marking: yellow colored with continuous print in underlayer throughout the whole length of roll. Applications: for pavements and general electric plant protection, electric transformation cabins, motor rooms, industrial rooms where there is high tension etc…

Application Sectors
