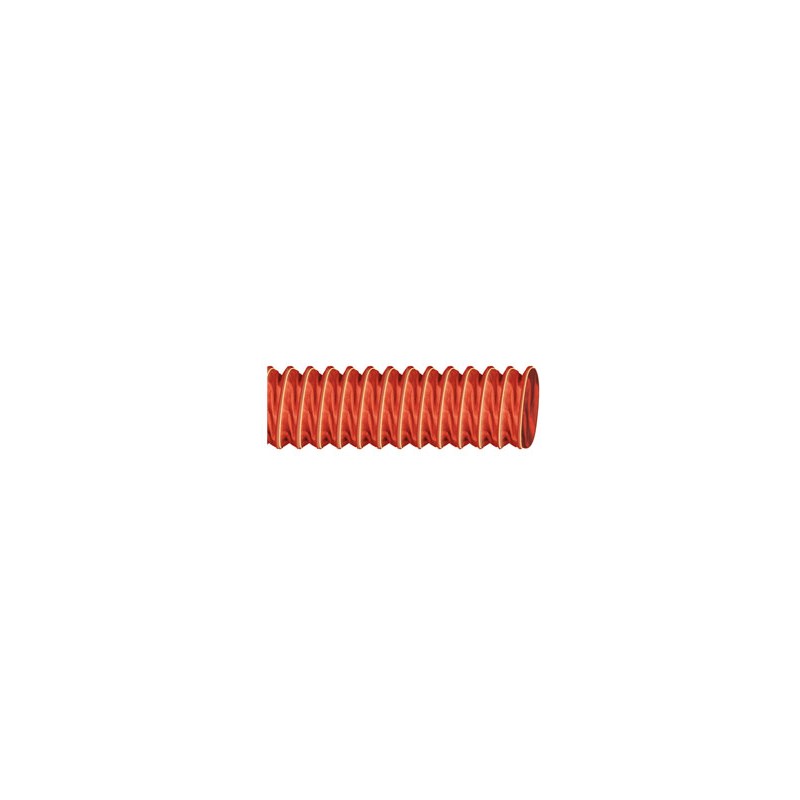

TERMOVEN/300 SPC
Spiral hoses for ventilation and suctionRed color, flexible hose made of two layers of glass...
Red color, flexible hose made of a layer of glass fiber impregnated with silicone compound, VISIBLE galvanized steel spiral and an external glass fiber string. For cold and hot air in hot environment suction and delivery. Can be axially compressed up to 30% of the length. Temperature range: -70°C +300°C (peaks). Other lengths and sizes available on request. Other internal diameters of production: 19 - 25 - 28 - 30 - 32 - 35 - 38 - 41 - 44 - 55 - 57 - 60 - 64 - 65 - 70 - 80 - 83 - 90 - 95 - 120 - 130 - 140 - 160 - 170 - 203 - 229. Other lengths, self-extinguishing V-0 (UL 94), end cuffs and insulated versions on request.
Description | Suction mm/H₂O | Weight g/m | Working press. bar | Bending radius mm | Packaging |
---|---|---|---|---|---|
TUBO P TERMOVEN/300°C./ROSSO 25 | 5000 | 120 | 1,6 | 8 | 4 MT |
TUBO P TERMOVEN/300°C./ROSSO 38 | 4900 | 168 | 1,3 | 12 | 4 MT |
TUBO P TERMOVEN/300°C./ROSSO 51 | 4200 | 250 | 1,2 | 16 | 4 MT |
TUBO P TERMOVEN/300°C./ROSSO 63 | 3900 | 300 | 1,1 | 20 | 4 MT |
TUBO P TERMOVEN/300°C./ROSSO 75 | 3300 | 410 | 1,1 | 25 | 4 MT |
TUBO P TERMOVEN/300°C./ROSSO 89 | 2900 | 490 | 1 | 29 | 4 MT |
TUBO P TERMOVEN/300°C./ROSSO 102 | 2500 | 650 | 0,9 | 35 | 4 MT |
TUBO P TERMOVEN/300°C./ROSSO 114 | 2100 | 720 | 0,9 | 40 | 4 MT |
TUBO P TERMOVEN/300°C./ROSSO 127 | 1600 | 800 | 0,8 | 46 | 4 MT |
TUBO P TERMOVEN/300°C./ROSSO 152 | 1300 | 980 | 0,7 | 50 | 4 MT |
TUBO P TERMOVEN/300°C./ROSSO 178 | 1000 | 1190 | 0,6 | 60 | 4 MT |
TUBO P TERMOVEN/300°C./ROSSO 203 | 650 | 1330 | 0,5 | 68 | 4 MT |
TUBO P TERMOVEN/300°C./ROSSO 254 | 400 | 1650 | 0,4 | 100 | 4 MT |
TUBO P TERMOVEN/300°C./ROSSO 305 | 350 | 2000 | 0,1 | 116 | 4 MT |
