TERMOVEN/300 SPC

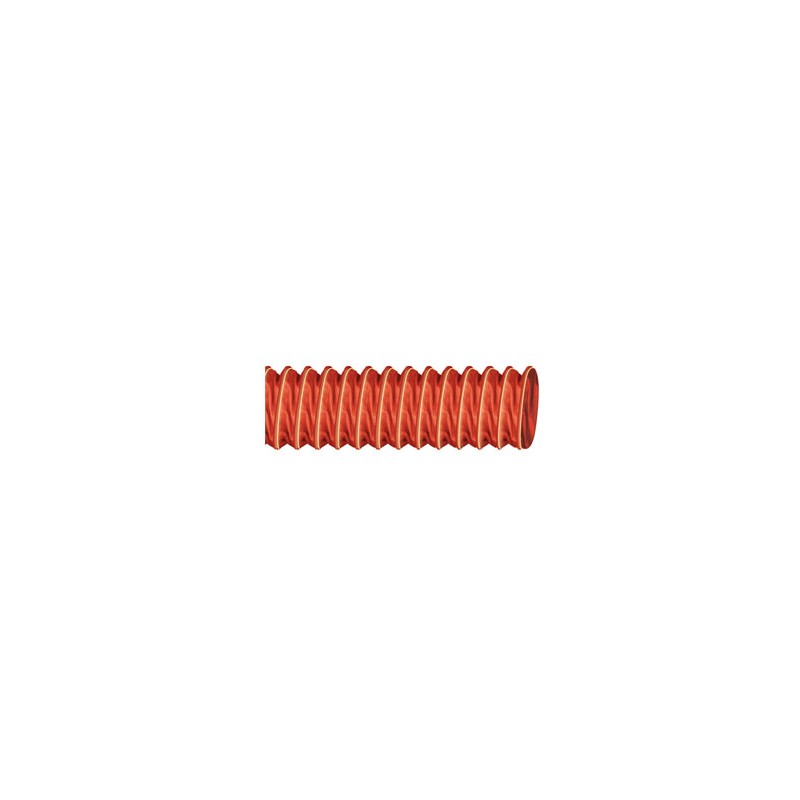

Red color, flexible hose made of two layers of glass fiber impregnated with silicone compound incorporating a galvanized steel spiral and an external glass fiber string. For cold and hot air in hot environment suction and delivery. Can be axially compressed up to 30% of the length. Temperature range: -70°C +300°C (max. point). Other sizes available on request.

Technical Data

Information request

Technical Data

Description	Suction mm/H₂O	Weight g/m	Working press. bar	Bending radius mm	Packaging
TUBO P TERMOVEN/300°C./ROSSO 25 SPC	7000	185	2,8	12	4 MT
TUBO P TERMOVEN/300°C./ROSSO 38 SPC	5900	305	2,6	18	4 MT
TUBO P TERMOVEN/300°C./ROSSO 51 SPC	5100	360	2,6	24	4 MT
TUBO P TERMOVEN/300°C./ROSSO 63 SPC	4500	485	2,4	31	4 MT
TUBO P TERMOVEN/300°C./ROSSO 76 SPC	4200	580	2,2	38	4 MT
TUBO P TERMOVEN/300°C./ROSSO 89 SPC	3900	690	2	44	4 MT
TUBO P TERMOVEN/300°C./ROSSO 102 SPC	3400	770	1,9	52	4 MT
TUBO P TERMOVEN/300°C./ROSSO 114 SPC	2900	845	1,5	60	4 MT
TUBO P TERMOVEN/300°C./ROSSO 127 SPC	2300	925	1,4	69	4 MT
TUBO P TERMOVEN/300°C./ROSSO 152 SPC	1600	1200	1,2	75	4 MT
TUBO P TERMOVEN/300°C./ROSSO 203 SPC	850	1650	0,7	101	4 MT
TUBO P TERMOVEN/300°C./ROSSO 254 SPC	650	2090	0,5	150	4 MT
